Our Products

PRODUCTS METALLURGY & GRADES

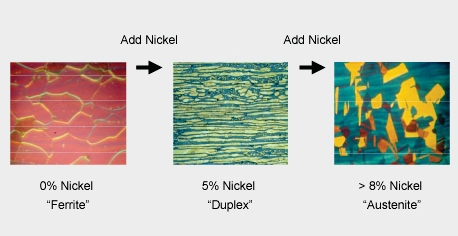

  • Austenitic Stainless Steel : 304/304 L, 1.4306, 304 H, 310 S, 316/316L, 316Ti, 317L, 321/321 H, 347 H, 904 L, UNS No. S31254

  • Ferritic Stainless Steel : 405, 409 & 410

  • Duplex Stainless Steel : Alloy 32205, Alloy 32750 & Alloy 32760

  • Nickel Alloys : Alloy 8020, Alloy 8028, Monel 4400, Inconel 6600, Inconel 6625, Inconel 8800, Inconel 8825 & Hastalloy C -276

  • Special Grades : EN 1.4835, EN 1.4435, EN 1.4335, UNS No. S31050, 316L UG, UNS No. S30815

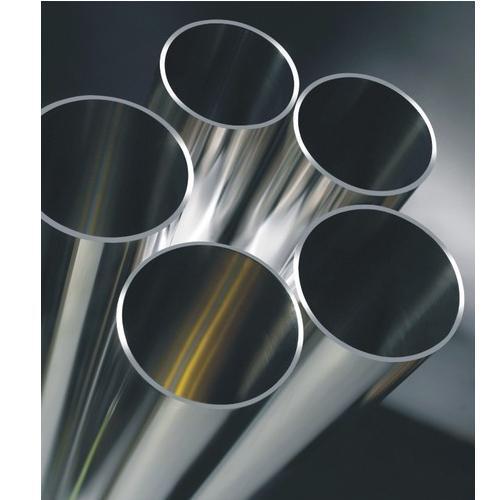

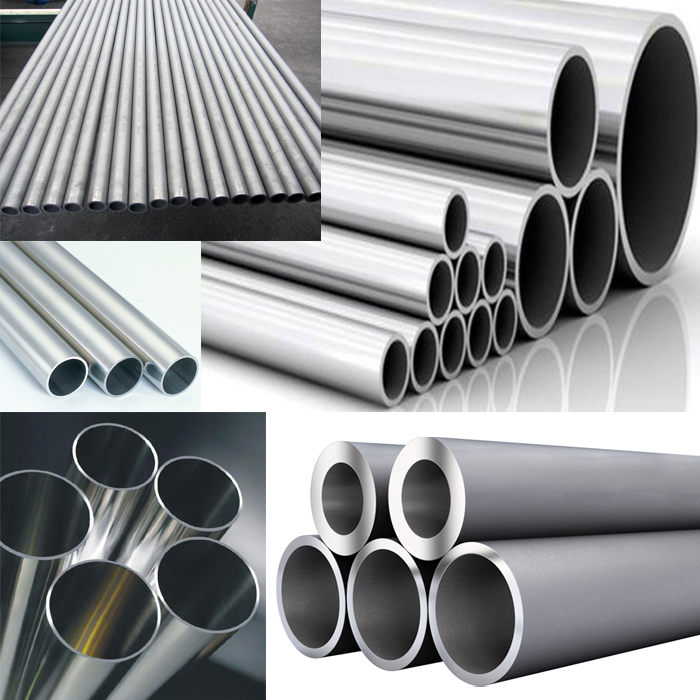

SEAMLESS

  • Specifications : ASME & ASTM A 213 / A 268 / A 269 / A312 / A 789 / A 790 / SB 165/ SB 338/ SB 423/ SB 444 / SB 729 / SB 829 / EN 10216-5 / EN 10297-2 / DIN 2391

  • OD : 3.175 mm to 323.90 mm

  • N.B : 1/8”- 12”

  • Thickness : 0.5 mm to 15 mm

  • Length : Up to 30 Meters

  • Process Features : Bright Annealed / Solution Annealed – Pickled – Passivated

  • Surface Finish : Bright / Pickled / Polished (ID & OD)

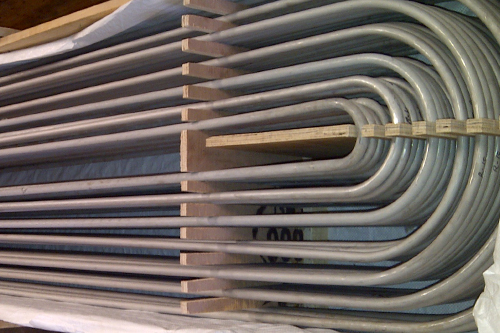

U-TUBES

  • Specifications : ASME / ASTM A213 / A688 & TEMA R 23C

  • OD : 9.53 mm to 50.80 mm

  • Thickness : 0.5 mm to 3.68 mm

  • Leg Length : Up to 14 Meters Leg Length

  • Process Features : Bright Annealed / Solution Annealed – Pickled – Passivated, IN-STU Metallography Test U-Bend 1.25 D Upto 1000 mm, Full Length Stress Relieving (SR) & DP After U-Bending

  • Surface Finish : Bright / Pickled / Polished (ID & OD)

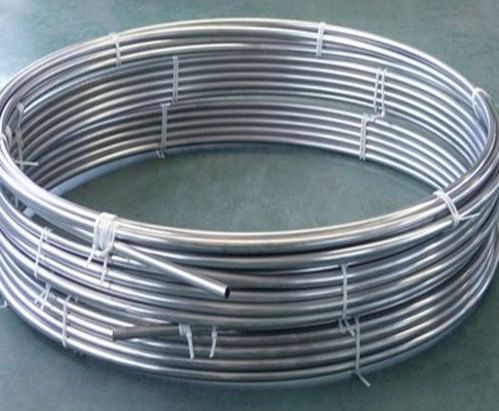

COIL FORMED TUBES

  • Specifications : ASME / ASTM A 213 /A 269

  • OD : 3.175 mm to 19.05 mm

  • Thickness : 0.5 mm to 1.65 mm

  • Length : Up to 300 Meters in Coil Form

  • Coil Dia : Up to 1 Meter

  • Process Features : Bright Annealed / Annealed Pickled Polished

  • Surface Finish : Bright / Polished

ERW WELDED TUBES & PIPES

  • Specifications : ASTM- Standards, A 249 / SA 249, A 268 / SA 268, A 269 / SA 269, A 312 / SA 312, A 688 / SA 688

  • OD : 12.00 mm to 38.00 mm

  • Thickness : 1.24 mm to 2.5 mm

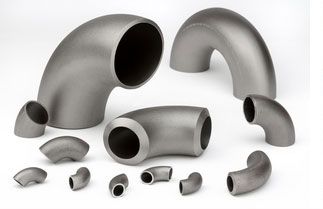

SEAMLESS FITTINGs (ELBOW-LR/SR)

  • Specifications : ASME : ANSI B16.9, ANSI B16.28, MSS-SP-43
    DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
    EN : EN10253-1, EN10253-2 (Seamless butt weld fittings)

  • NB : 1/2’’ NB to 4’’ NB

  • Thickness : Sch10 to Sch40

  • Length : As per standard

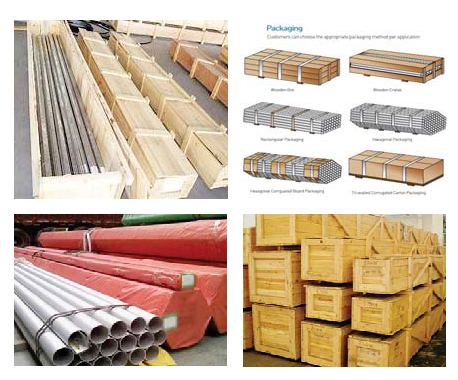

PACKING AND LOGISTICS

All products are packed adhere to the customer’s requirement only.

TYPE OF PACKING :

  • Seaworthy Wooden box

  • Seaworthy Crate box

  • Hessain Cloth

LOGISTICS :

  • By Road All Over India

  • By Sea Worldwide

  • By Air Worldwide

  • 20' & 40' Open Top

  • 45' Close Top Container

  • FCL & LCL Cargo

  • Flat Bed Container

  • Breakbulk Container

Over view

Infrastructure of the plant Well equipped utilities and facilities
Total Seamless Output (Cold Drawn) 1000 MT / Annum
Product MOC Austenitic, Super Austenitic, Duplex,
Super Duplex & Nickle Alloy
Types of Products Stainless, Duplex, Super Duplex & Nickel & other
Alloys Tubes, Pipes, U Tubes and Fittings
In House Testing Facility-Water leak (Hydro) Test, Air Under Water (Pneumatic)
Test and reputed Test house associated for Eddy Current Testing,
Ultrasonic Testing, IGC Pr. A & E to meet standard requirement &
adhere to the customer satisfaction
